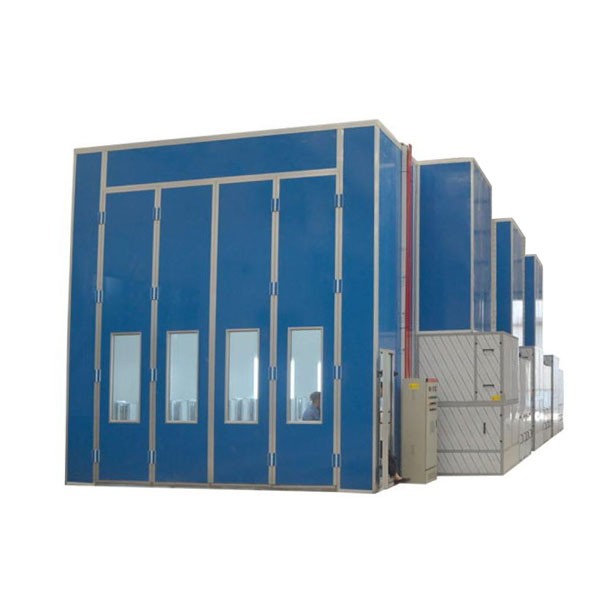

12m spray baking booth for Bus

Main size

Inside dimension：12000×4500×3500mm(L×W×H)

Outside dimension：12150×6096×4100mm(L×W×H)

Without basement,2 rows of pits in the ground for exhaust air,dimension of each pit is 10000×750mm(L×W)

Main door：3-folds,3300×3400mm(W×H),color:white

Personal door：2 units,600×2000mm(W×H), insulation is polystyrene,color:white

Room body

Thickness:75mm,width:1150mm,tongue and groove structure,made by 0.426mm color steel with polystyrene inside,color:white

Lighting

Ceiling lights:16Units×3Pcs=48Pcs×16W LED

Side lights:10Units×4Pcs==40Pcs×16W LED,vertically set

Generator setting

Intake air from side upper direction,exhaust air from back upper direction,quadrate steel frame,outside is white coated steel,inside is galvanized steel

Intake and exhaust air system (2 units)

In total 4×4KW centrifugal fans for intake air,model YDW4.5L,air capacity is 12500m³/h for each fan;2×7.5KW centrifugal fans for exhaust air,model 4-82,belt-drive,air capacity 20000m³/h for each fan

Heating system (2 units)

2 sets: RIELLO RG20 oil burners,heating productivity is 360000Kcal/h,2 stainless steel heat ex-changers,2 electric dampers from spraying to baking cycle.Highest working temperature 80℃

Filtering system

Pre-filter , high efficiency filter(ceiling filter),floor filter (fiber glass),M-shape activated carbon filter,extract fiber glass filter replaced by level side

Control System

Spraying,risen-temperature spraying,baking,time setting,lighting switch,failure indicator,temperature controller,power supply switch,emergency stop,time accumulator,temperature limit controller
